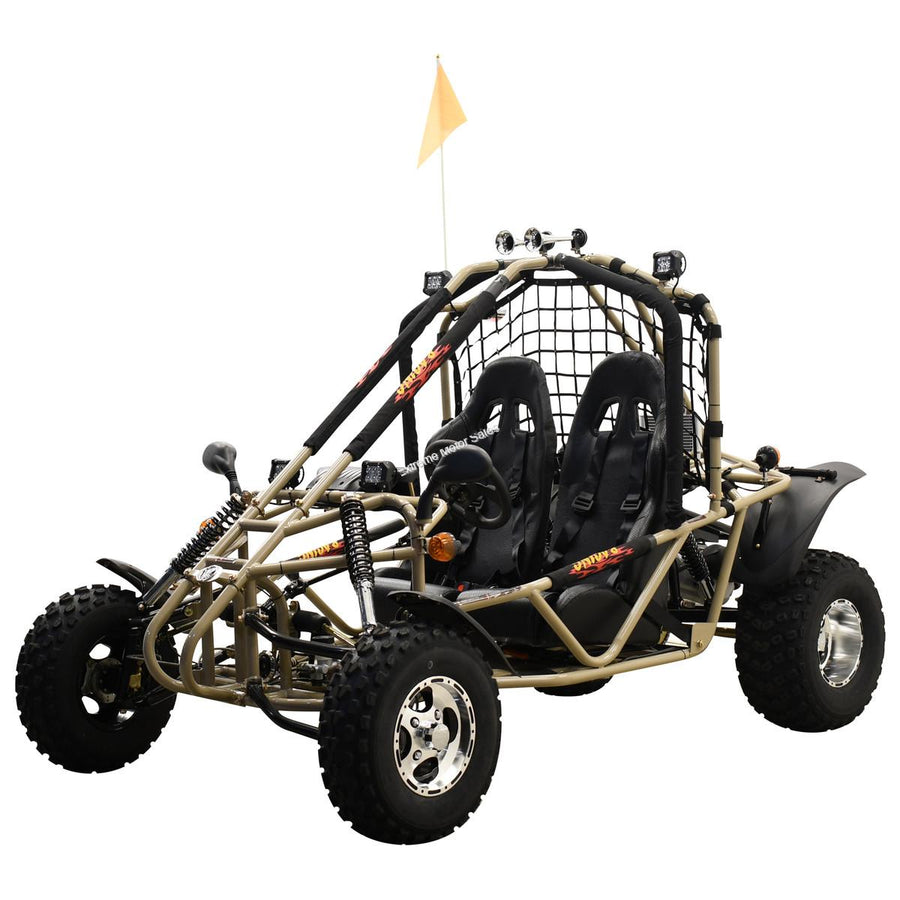

Extreme Spider KD200GKA 200cc Go Cart — Full Specifications

The Extreme Spider KD200GKA is a high-performance, fully loaded off-road go cart designed for serious trail riding. It’s based on a GY6 clone engine and offers a balance of power, safety, and rugged handling.

Engine & Performance

• Type: 177.3cc single-cylinder, 4-stroke, air/oil-cooled

• Power: 8.72 hp @ 7200–7500 rpm

• Torque: 10 N·m @ 6000 rpm

• Drive: Chain drive, automatic with reverse

• Max Speed: ~37–45 mph depending on configuration

Brakes & Safety

• Front/Rear: Hydraulic disc brakes

• Emergency Brake: Yes

• Seats: Dual sport bucket seats with adjustable height (36–40 inches)

• Safety: Dual 3-point harnesses, rear safety net, integrated side rails, padded top, brush guard cage, enclosed floorpan

Suspension & Ground Clearance

• Front: Independent suspension with coil-over shocks

• Rear: Swing arm with dual coil-over shocks

• Ground Clearance: 11 inches

Lights & Electronics

• Headlights: 4 halogen off-road lights with high/low beams

• Tail Lights: Yes

• Blinkers: With hazard light function

• Mirrors: Integrated side mirrors

• Start: Electric start with keyed switch

• Ignition: CDI

• Battery: 12V, 9Ah

Tires & Wheels

• Front: 21×7–10

• Rear: 22×11–10

• Wheels: Black steel or aluminum (optional upgrade)

Dimensions & Weight

• Wheelbase: 74.3–75 inches

• Overall Size: 98×57×60 inches

• Net Weight: ~562–595 lbs (varies by configuration)

• Max Load: 353–500 lbs depending on model

• Fuel Capacity: 1.5–1.6 gallons

• Colors: Black, red, blue, yellow (varies by seller)

Key Features

• Fully loaded, full-size go cart for off-road trails

• High ground clearance and coil-over suspension for rugged terrain

• Adjustable seat for driver comfort

• California legal and EPA-approved configurations

This model is ideal for riders seeking a capable, safe, and versatile off-road buggy for trails, dunes, or competitive karting.
